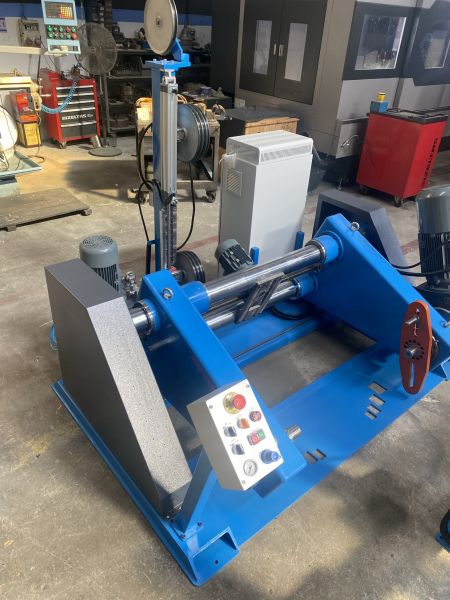

Çatal Tip Verici
Çatal Tip Verici
| Fork Type Pay Off | ||||
| Model | 630H | 1000H | 1250H | 1600H |
| Maximum Spool Diameter | 630 mm | 1000 mm | 1250 mm | 1600 mm |
| Minimum Spool Diameter | 630 mm | 630 mm | 800 mm | 1000 mm |
| Pinole Diameter | 125 mm | 80 – 125 mm | 80 – 125 mm | 80 – 125 mm |
| Type | Fork Type | Fork Type | Fork Type | Fork Type |
| Spool Lifting System | AC Motor | AC Motor | Hydraulic Fork Type | Hydraulic Fork Type |
| Main Motor | AC Motor + Belt Drive System | AC Motor + Gearbox | Motor with gearbox | Motor with gearbox |
| On / Off Motor | Manuel | Manuel | With Motor | With Motor |
| Brake System | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
